Location: BIN 164, STOCK 3243

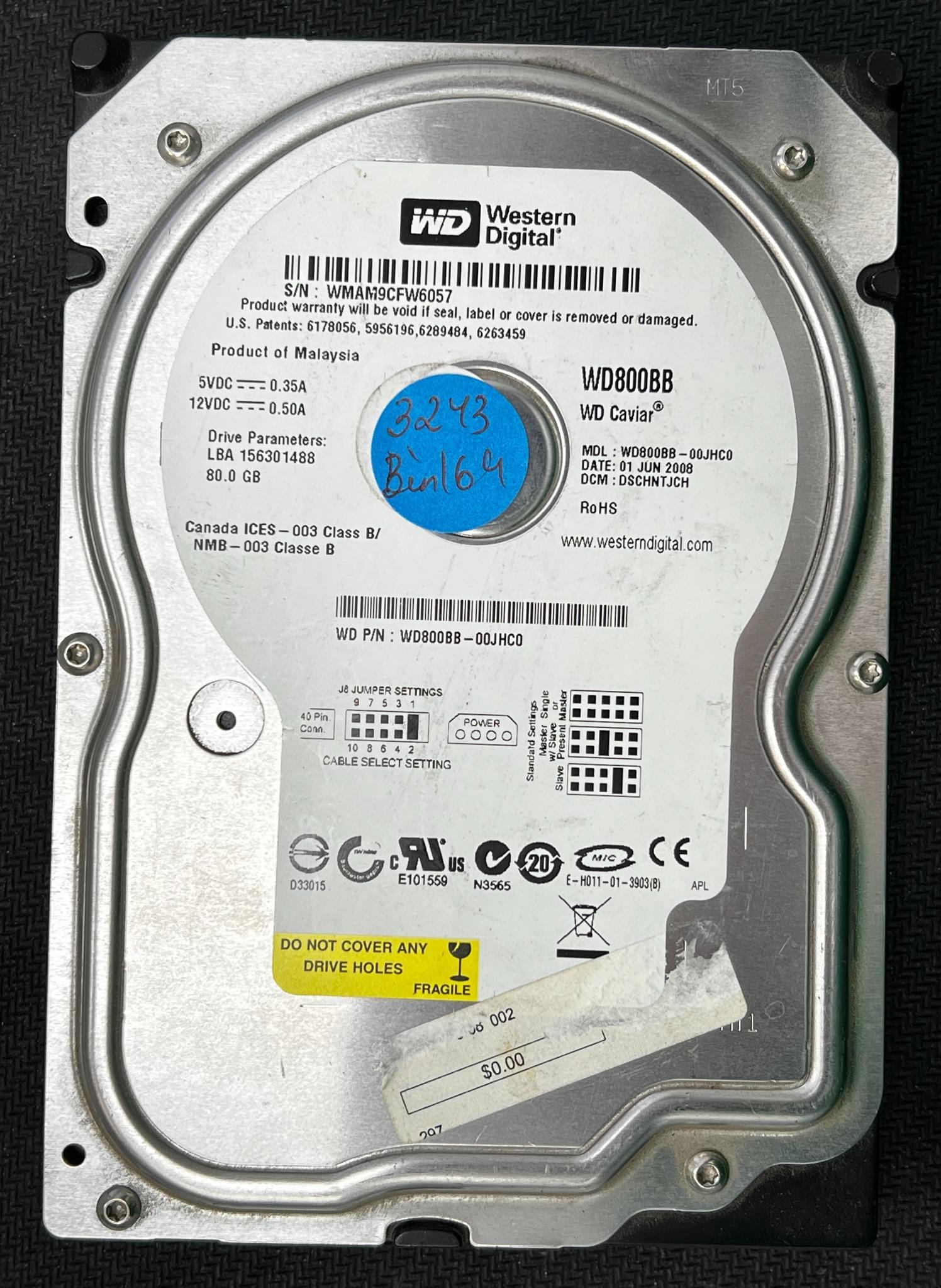

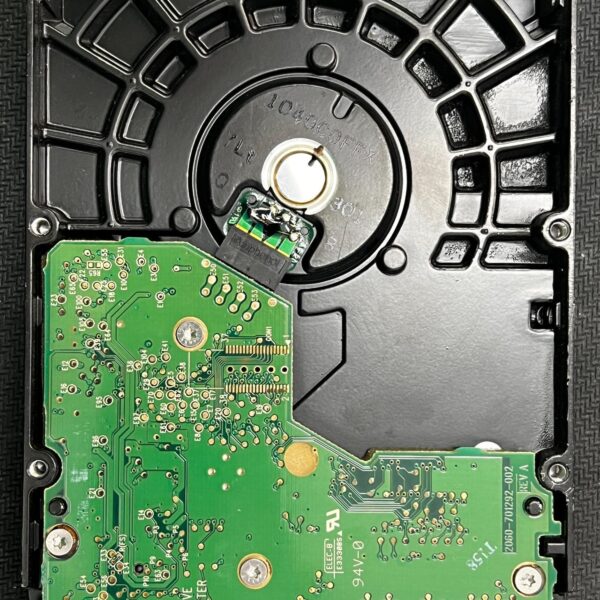

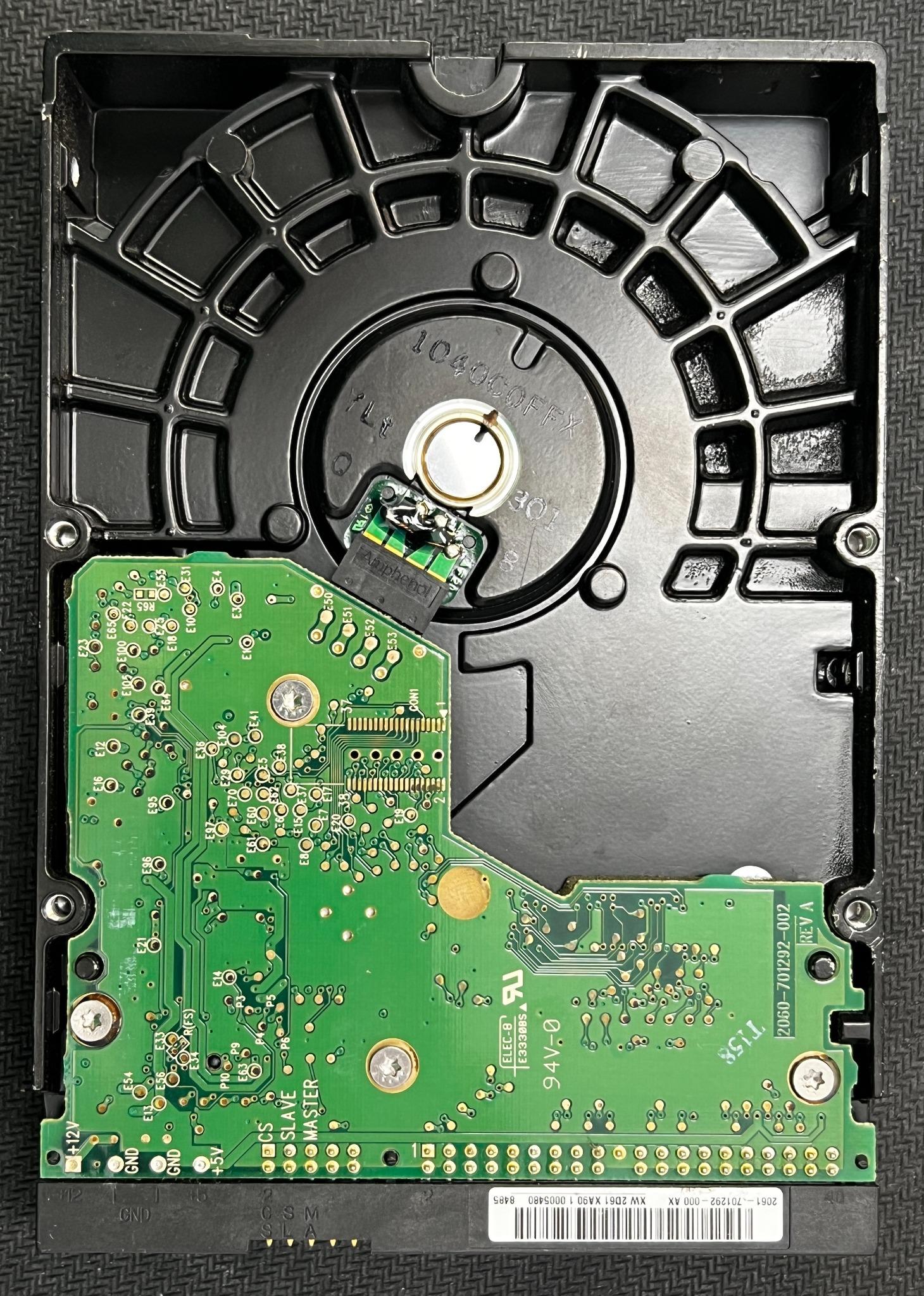

WESTERN DIGITAL WD800BB WMAM9CFW6057 2008-06-01 80GB HDD
Full File Name: WESTERN DIGITAL WD800BB WMAM9CFW6057 2008-06-01 80GB HDD
Model: WD800BB
Full Model: Western Digital WD800BB-00JHCO
Series: WD Caviar
Capacity: 80GB
Interface: PATA / IDE (ATA/ATAPI-6)
Serial Number (S/N): WMAM9CFW6057
Part Number (P/N): WD800BB-00JHCO / 2061-701292-002
Firmware (FW): 08.02D08 (Common for this batch)
WWN: Unknown
Manufacture Date (DOM): 2008-06-01 (01 June 2008)
Site Code: MY (Malaysia)
Power Specs: +5V 0.35A / +12V 0.50A
Spindle Speed: 7200 RPM
Drive Class: Desktop / Legacy
Cache: 8 MB
Notes: DCM: DSCHNTJCH; LBA: 156301488; PCB Code: 2060-701292-002; PCB Label: 2061-701292-002 AE; Regulatory: ICES-003, UL, CE, CSA, TÜV; PATA/IDE variant with Master/Slave/CS jumpers.
