Western Digital Caviar Blue / SE – WMAEH – 2015-10 – 7200RPM SATA 3.5″ HDD

FULL FILE NAME: Western Digital Caviar Blue / SE – WMAEH – 2015-10 – 7200RPM SATA 3.5″ HDD

BRAND: Western Digital
SERIES FAMILY: Caviar Blue / Caviar SE
PLATFORM ARCHITECTURE: WD “Aries” 3.5-inch Desktop Mechanical Platform
FORM FACTOR: 3.5-Inch Internal Hard Disk Drive
INTERFACE: SATA (Serial ATA)
SATA GENERATION: SATA II / SATA III Compatible (1170 PCB Series)
ROTATION SPEED: 7200 RPM
CACHE CLASS (ARCHITECTURE RANGE): 8MB–32MB
CAPACITY CLASS (ARCHITECTURE RANGE): 160GB – 500GB
IDENTIFICATION MARKERS (VISIBLE)

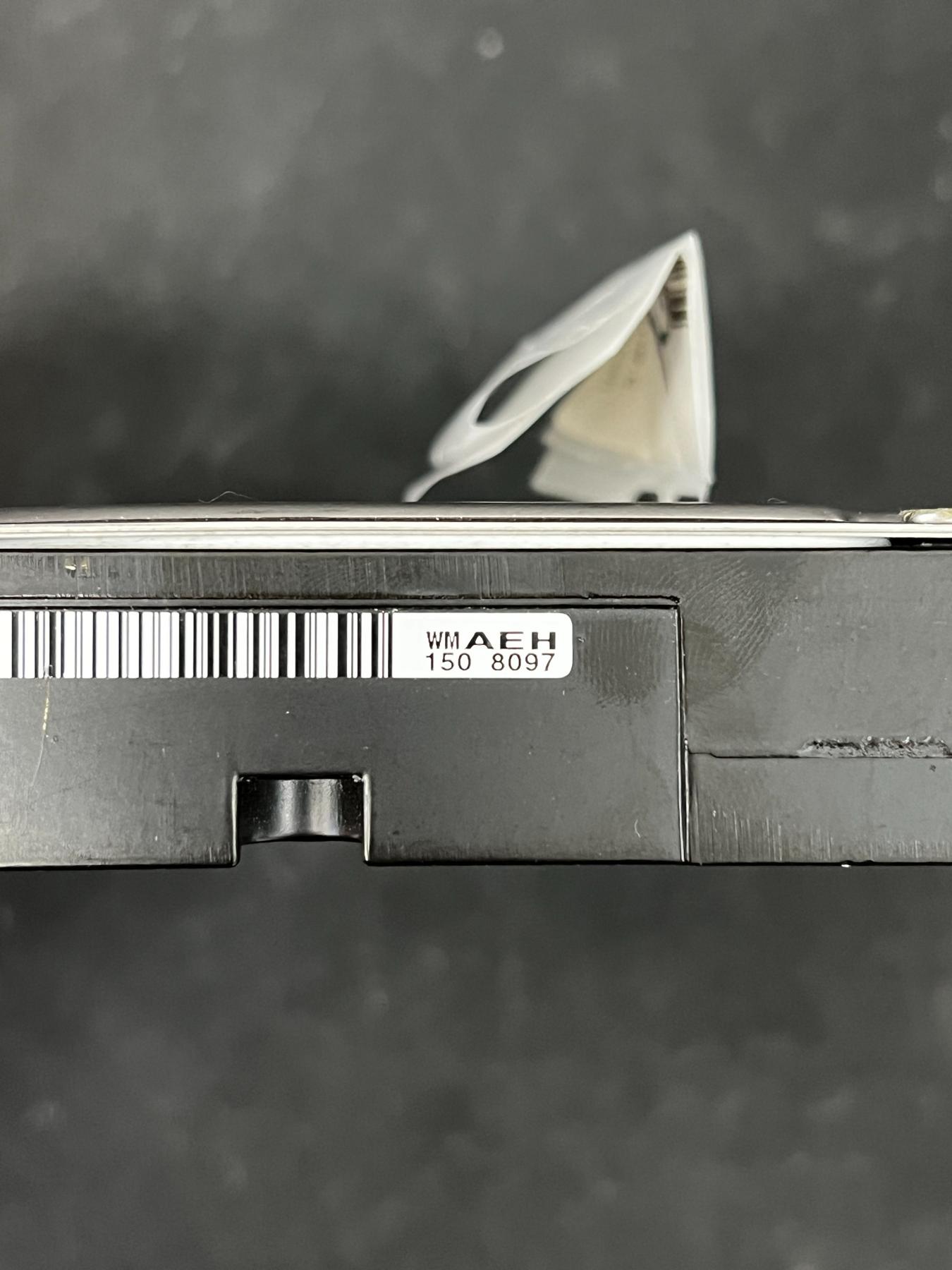

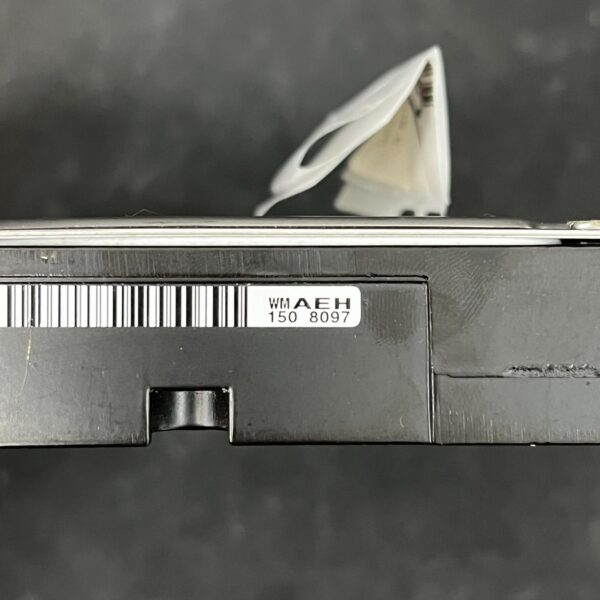

SIDE LABEL CODE: WMAEH
TRACKING NUMBER: 150 8097

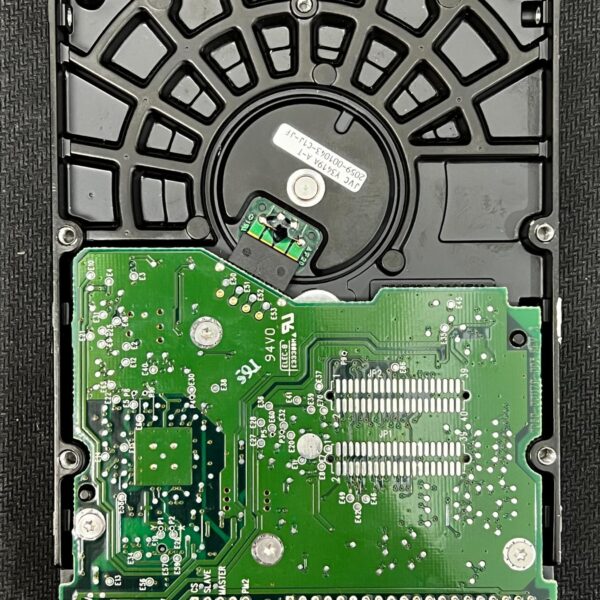

PCB PART NUMBER: 2061-001170-000
PCB BOARD ID (ETCHED): 2060-001170-000
PCB REVISION: REV DE
PCB FAMILY: 1170 Series
MOTOR HUB ASSEMBLY: Y3419A A-1
MOTOR PART NUMBER: 2059-001043-01J-JF
MOTOR ETCHING: 4215
PRINTED MOTOR DATE CODE: 4215
DATE CODE TYPE: YYWW Format
DECODED DATE: 2015 Week 42
NORMALIZED DATE (YYYY-MM): 2015-10
CASTING FAMILY: Aries
PLATTER CONFIGURATION: 1–3 Platter Compatible Chassis
HEAD STACK FAMILY: WD Aries Architecture
CHASSIS TYPE: Desktop Performance Platform
UL RATING: 94V-0
RoHS COMPLIANCE: Yes (Production Era Based)
PCB SILKSCREEN MARKINGS: 94V-0, UL Recognized
